SETJ3F2CW

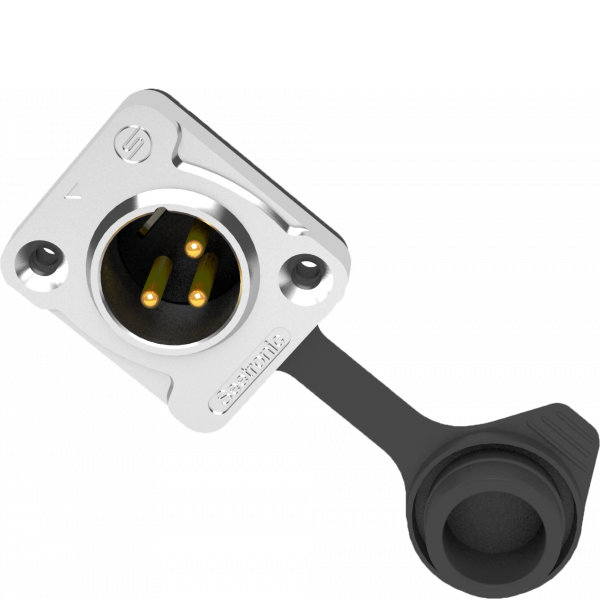

Male 3-pin XLR connector with metal body and protective sleeve in waterproof and dust-proof rubber. Unified size of type D.

Features:
Number of poles: 3.
Lifetime: > 1000 mating cycles.
Chassis shape: D.
Shell: die-cast Zinc casting.
Gold contacts.
Protective rubber cover.
Flammability class: UL 94 HB.
Degree of protection: IP 65.
Compliance standards: IEC 61076-2-103.
Solderability: complies with IEC 68-2-20.
Temperature range: -30 °C to 80 °C.
Dimensions (WxHxD): 27x76x28 mm.
