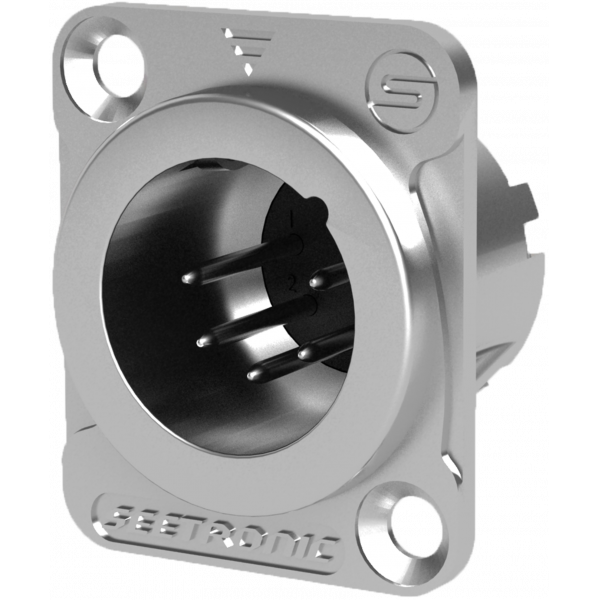

Metal 5-pin XLR male panel socket, tinned contacts. Unified size of type D and complete RF shielding.
Features:
Number of poles: 5.
Duration> 1000 mating cycles.
Locking device: latch lock.
Chassis shape: D.
Shell: die-cast Zinc casting.
Tin-plated copper contacts.
Flammability class: UL 94 HB.
Degree of protection: IP 40.
Compliance standards: IEC 61076-2-103.
Solderability: complies with IEC 68-2-20.
Temperature range: -30 °C to 80 °C.
Dimensions (WxHxD): 26x31x26 mm.
