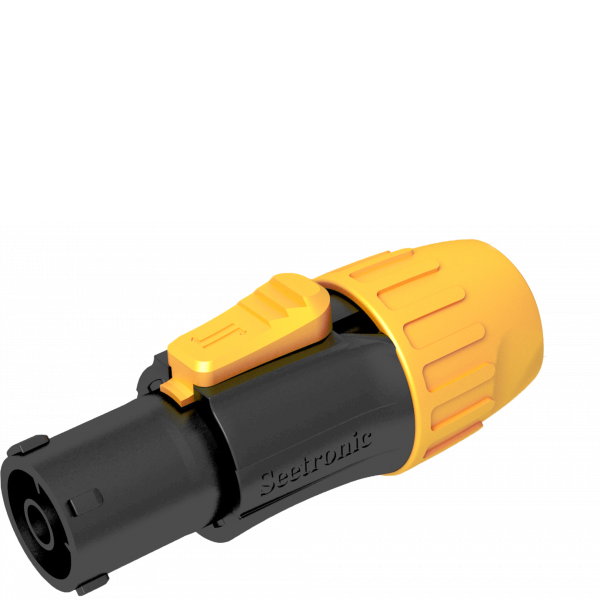

3-pole powerCON TRUE1 connector (line, neutral, ground) for powering devices that need a robust solution and a quick lock safe quick lock system.
Attention: PowerCON is not designed for "hot" connection, so it is not recommended to connect or disconnect devices under load!
Features:
Cable: 7 - 9 mm (the small aperture aprons) / 9-11mm (Large diameter rubber ring).
Locking device: Quick Lock.
Lifetime: > 1000 mating cycles.
Contacts: Bronze.
Locking button: die-cast Zinc casting.
Shell: Polyamide.
Flammability class: UL94 V-0
Solderability: complies with IEC 68-2-20.
Degree of protection: IP65.
Temperature range: from -30 °C to +80 °C.
Dimensions (WxHxD): 70x31x31 mm.
