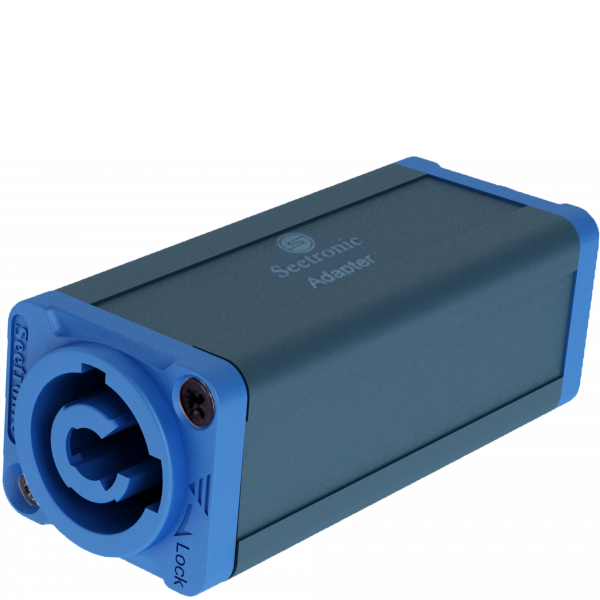

Power supply with input for 3-pole AC connector on both sides to extend the connection.
"Quick-lock" quick and safe locking system.
Extremely robust and reliable.
Excellent cable retention.
Attention: the power supply is a connector without breaking capacity, ie the power supply must not be connected or disconnected under load or live!
Features:
Locking device: Quick Lock.
Lifetime: > 1000 mating cycles.
Contacts. Bronze, silver-plated.
Shell: Aluminum.
Safety requirements: EN / IEC 61984.
Temperature range: from -30 °C to +80 °C.
Dimensions (WxHxD): 79x26x31 mm.
