SETSC4MXXW

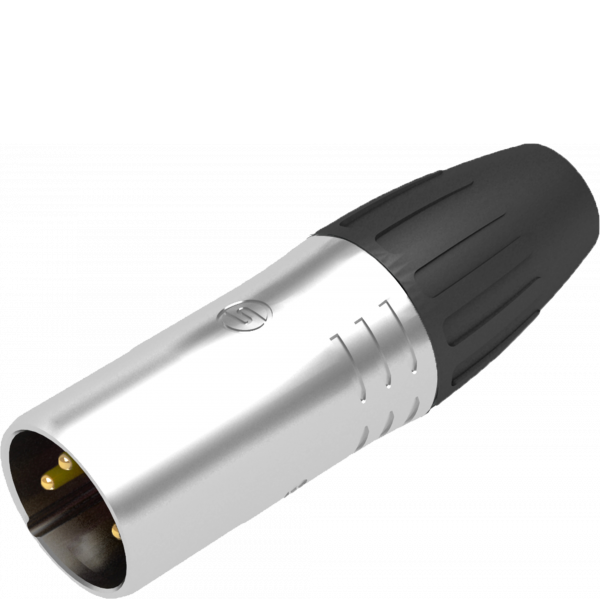

Male 4-pin XLR connector with metal and gold-plated contacts for better conductivity, long life and high reliability.
It can be used with SETSC4FXXW.

Features:
N° poles: 4.
Cable: Ø 9 - 10 mm.
Lifetime: >1000 cycles.
Locking system: latch lock.
Shell: die-cast Zinc casting.
Gold contacts.
Traction exhaust: Polyacetal.
Flammability class: UL 94 HB.
Compliance standards: IEC 61076-2-103.
Degree of protection: IP 65.
Solderability: complies with IEC 68-2-20.
Temperature range: -30 °C to +80 °C.
Dimensions (WxHxD): 69x20x20 mm.
