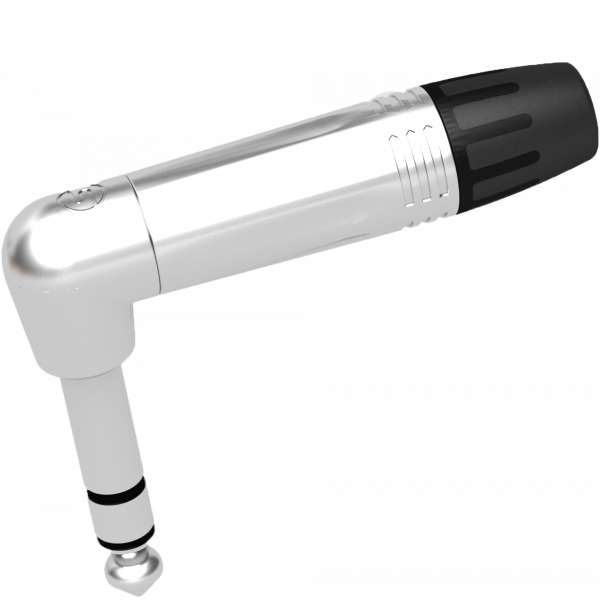

Jack plug Ø 6.35 mm - 1/4 ", right angle, 3 poles, with a minimum overall dimensions (only 13.5 mm diameter) for maximum operational convenience.
Sturdy ergonomic sleeve made of metal.
Exclusive cable retention system.
The connector is suitable for all connection needs (musical instruments, speakers, amplifiers, mixers, etc ...).
Features:
Cable: Ø 4 - 7 mm.
Lifetime: > 1000 mating cycles.
Shell: die cast Zinc casting.
Traction exhaust: Polyacetal.
Compliance standards: IEC 60603-11 / EIA RS-453.
Solderability: complies with IEC 68-2-20.
Temperature range: -20 °C to +65 °C.
Dimensions (LxAxP): 50x50x13.5 mm.
