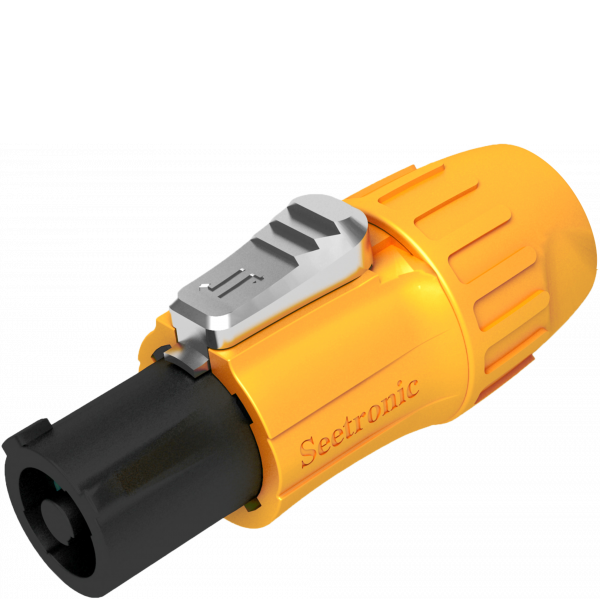

3-pole powerCON connector (line, neutral, ground) for powering devices that need a robust solution and a quick lock safe "Quick lock" system.
Attention: PowerCON is not designed for "hot" connection, so it is not recommended to connect or disconnect devices under load!
Features:
Locking device: Quick Lock.
Lifetime: > 1000 mating cycles.
Contacts: Copper, silver plated.
Shell: Polyamide.
UL recognized components.
Degree of protection: IP65.
Safety requirements: IEC 61984.
Flammability class: UL94 V-0.
Temperature range: from -30 °C to +80 °C.
Dimensions (WxHxD): 70x32x27 mm.
