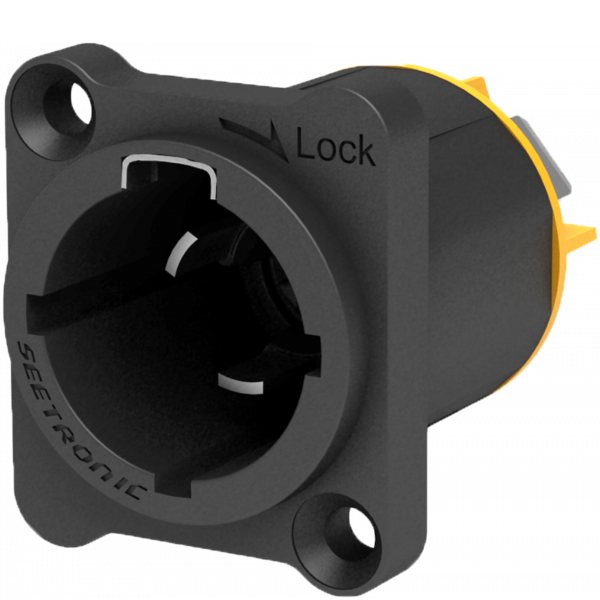

PowerCON TRUE 1 3-pole input panel connector with standard D-type frame (line, neutral, ground) to power devices that need a robust solution and a quick and safe "Quick lock" locking system.
Attention: PowerCON is not designed for "hot" connection, so it is not recommended to connect or disconnect devices under load!
Features:
Locking device: Quick Lock.
Lifetime: > 1000 mating cycles.
Contacts: Bronze.
Locking button: die-cast Zinc casting.
Shell: Polyamide.
Colour black.
Flammability class: UL94 V-0.
Solderability: complies with IEC 68-2-20.
Degree of protection: IP65.
Temperature range: from -30 °C to +80 °C.
Dimensions (WxHxD): 26x31x41 mm.
