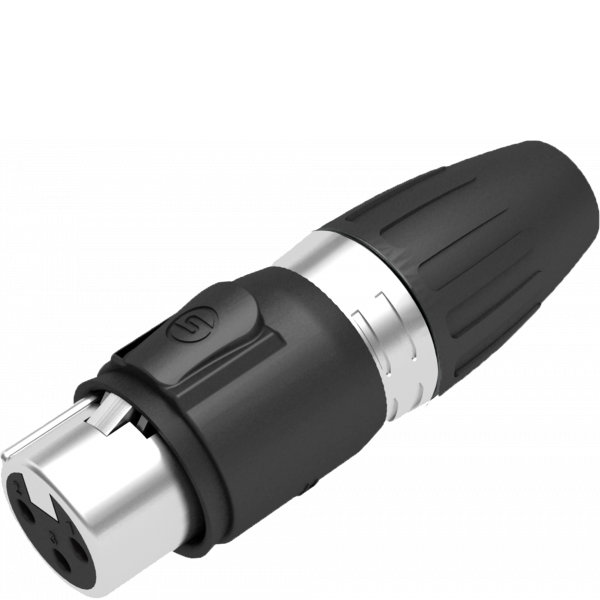

Female 3-pin XLR connector with metal body and gold-plated contacts for better conductivity, long life and high reliability.
Features:
N° poles: 3.
Cable: Ø 5 - 8 mm.
Lifetime: >1000 cycles.
Locking system: latch lock.
Shell: die-cast Zinc casting.
Gold contacts.
Traction exhaust: Polyacetal.
Flammability class: UL 94 HB.
Compliance standards: IEC 61076-2-103.
Degree of protection: IP 65.
Solderability: complies with IEC 68-2-20.
Temperature range: -30 °C to +80 °C.
Dimensions (WxHxD): 72x23x23 mm.
